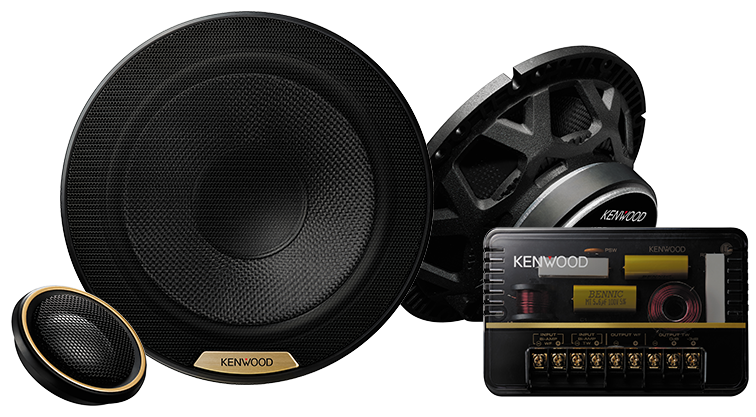

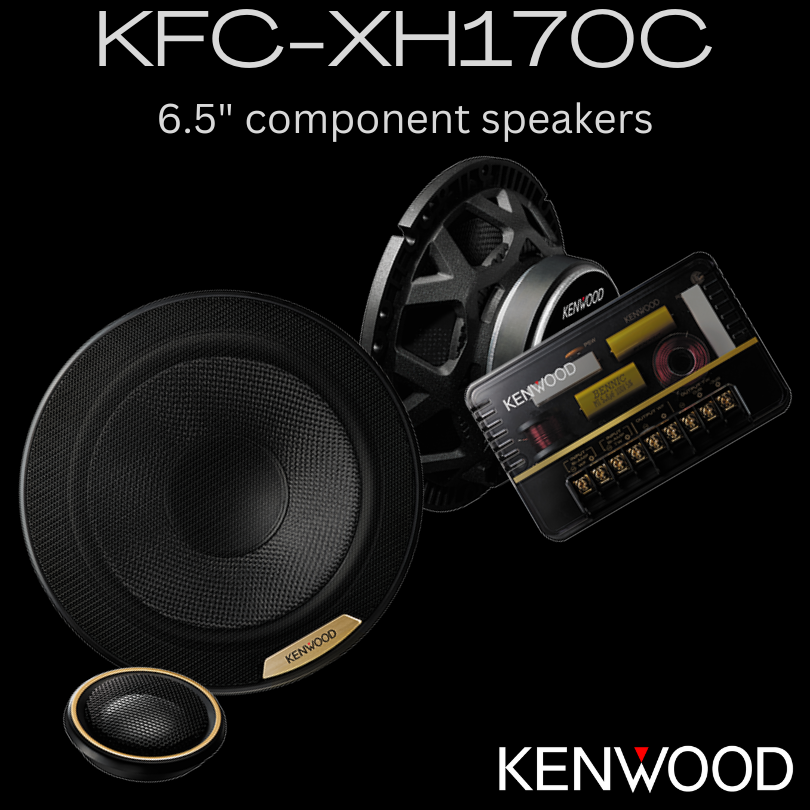

KFC-XH170C 6″ hi-res component speakers

Peak Input Power – 300W

RMS Power Handling – 100W

KFC-XH170C

6″ hi-res component speakers

Peak Input Power – 300W

RMS Power Handling – 100W

Sensitivity (dB/W at 1m)
87dB

Frequency Response
60Hz – 35,000Hz

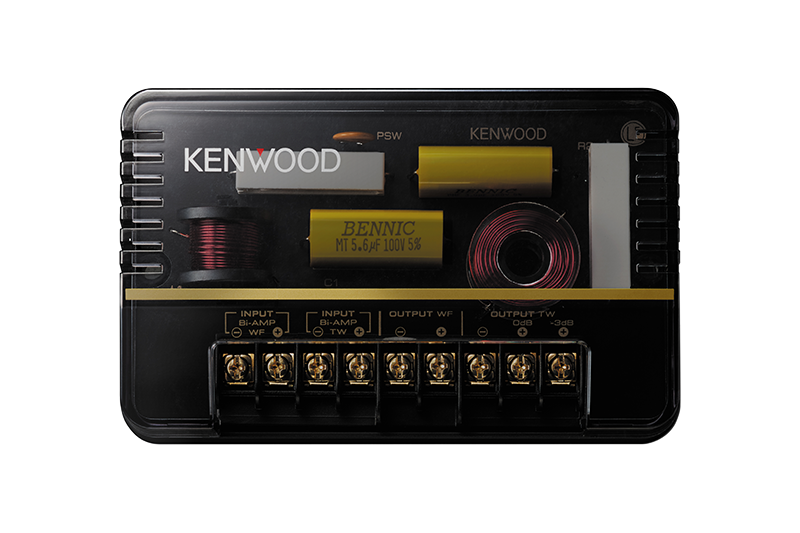

300W Network Box with Bi AMP capability
Network box allows to power the tweeter and woofer individually
RMS Power Handling from combined amplifier.
100W (Kenwood XH401-4 is The Best Recommended)
Impedance : 3Ω

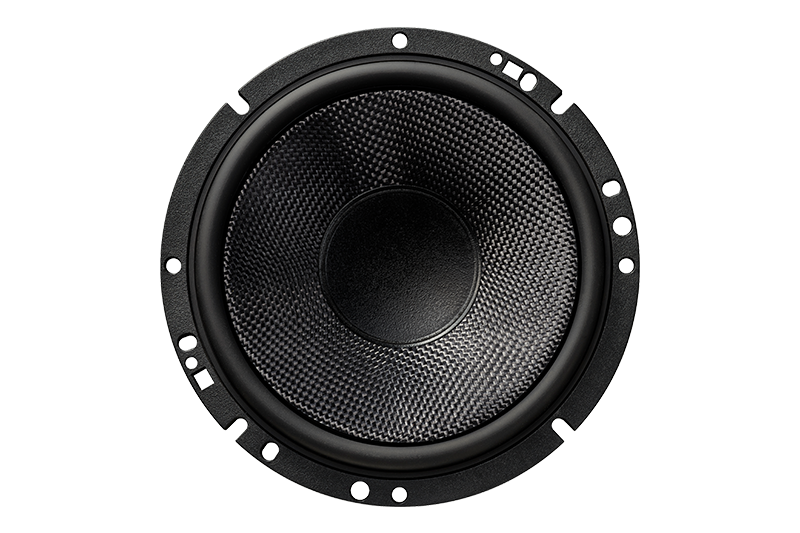

Unique Shape for Woofer Enhancement
Woofer Features The circle rib on woofer cap provides enhanced woofer stability,
17cm High Rigid Glass Fiber Diaphragm Cone ensuring bass is deep and clear.

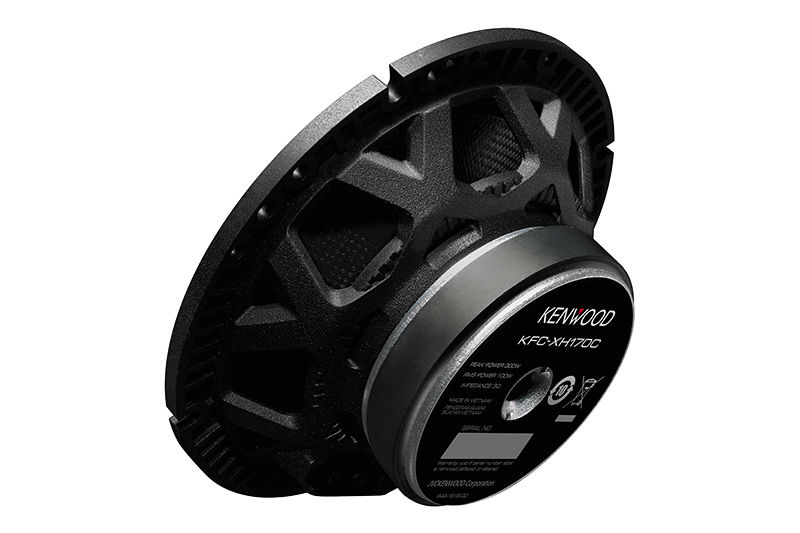

Big Magnet Circuit : φ90 x t15

Tweeter Features
Separated Tweeter
30mm Titanium Dome Super Tweeter Asymmetrical thickness of the surround roll shape provides better focused bass.

HPF / LPF :-12db/oct Woofer
POLYSWITCH with Resister for Tweeter Width : 23.8 mm
Attenuator : 0/-3dB Cutout Diameter : 140.0 mm
Output: Tweeter /Woofer, Attenuator Mounting Depth : 59.0 mm
Input: Tweeter / Woofer
Bi AMP Jumper Included for Single Connection Tweeter
Tweeter Height : 23.8 mm
Cutout Diameter : 45.5 mm
